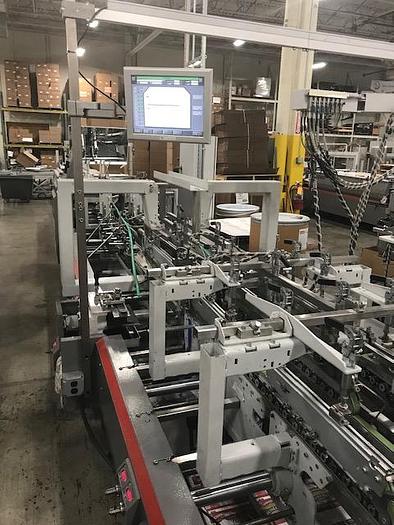

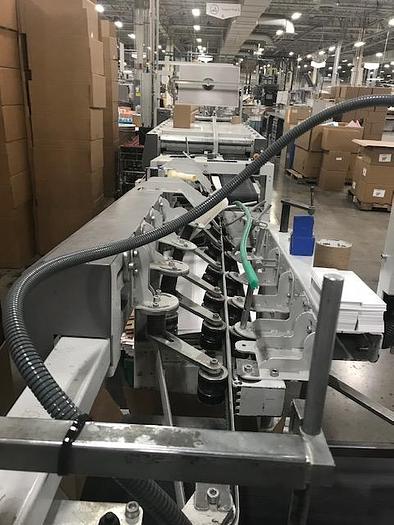

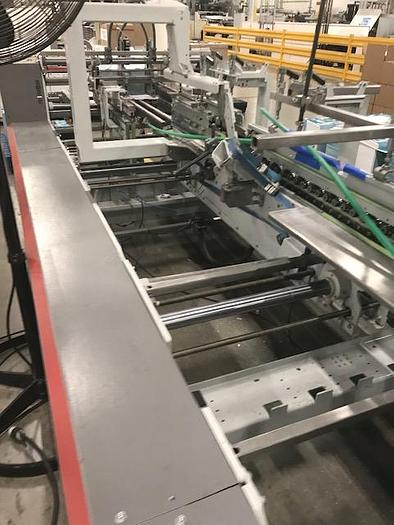

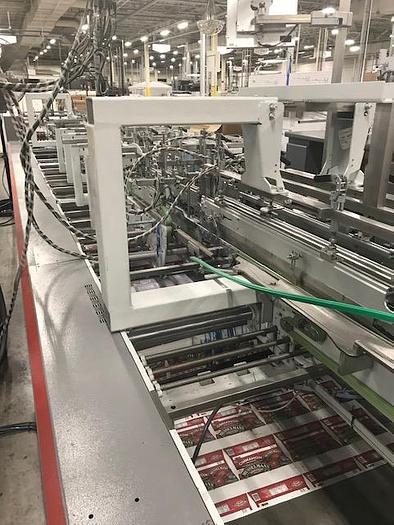

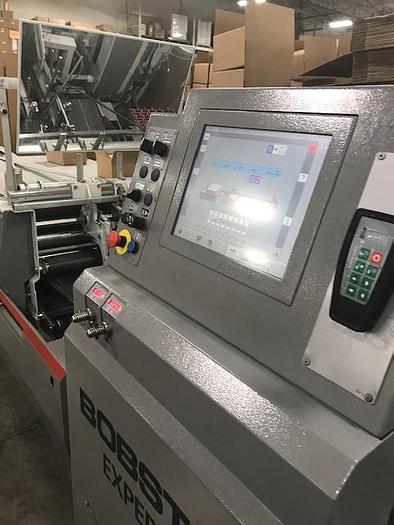

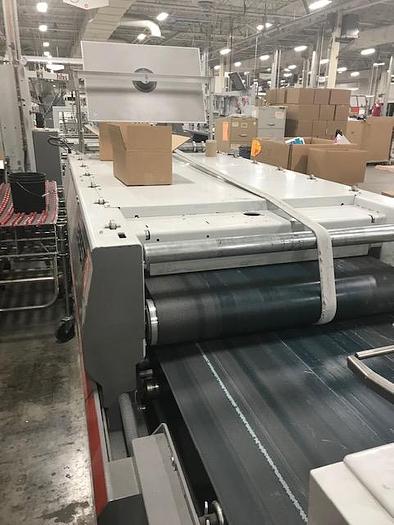

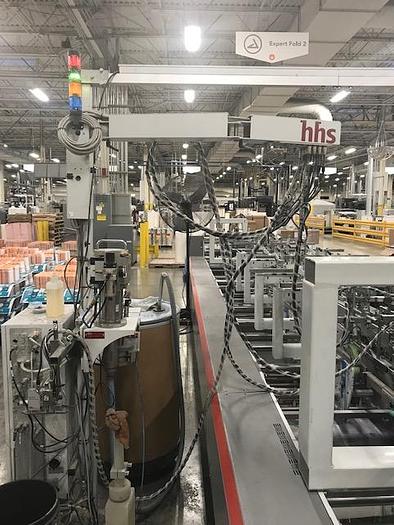

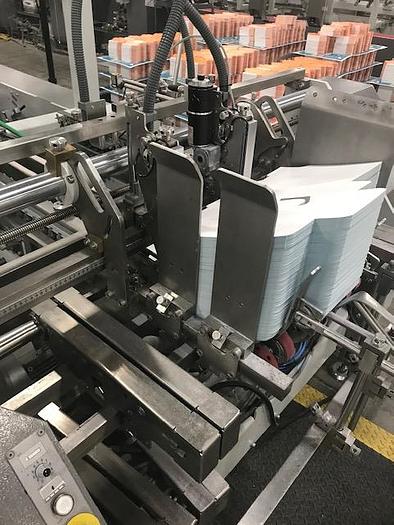

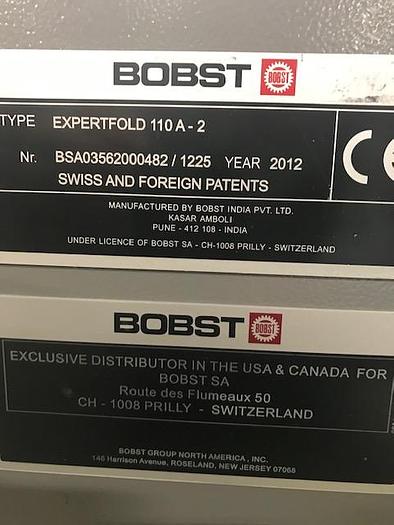

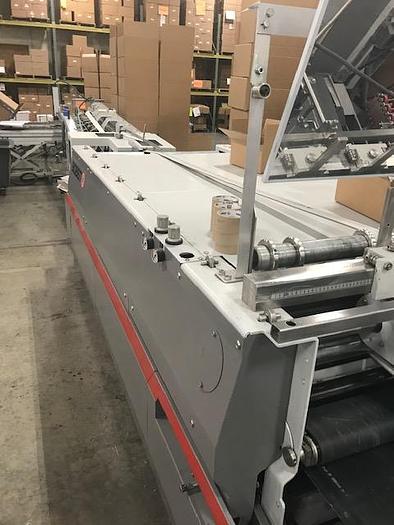

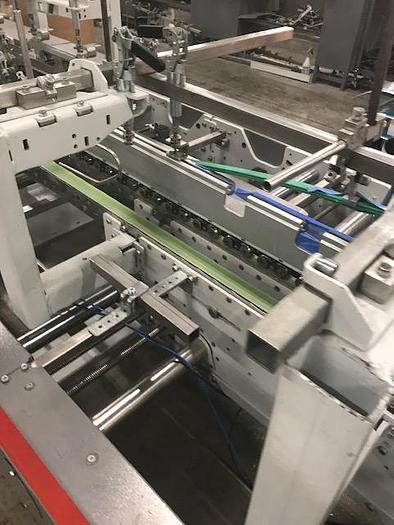

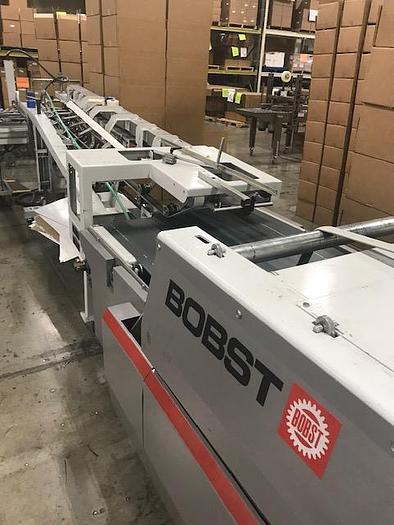

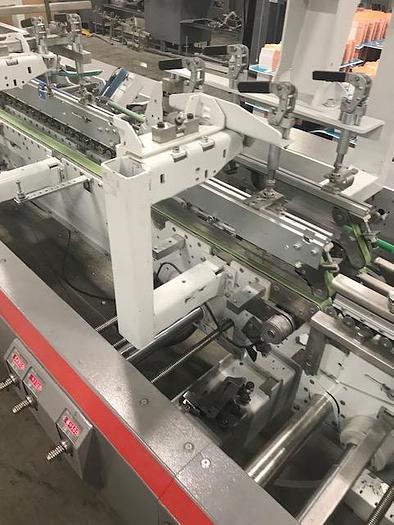

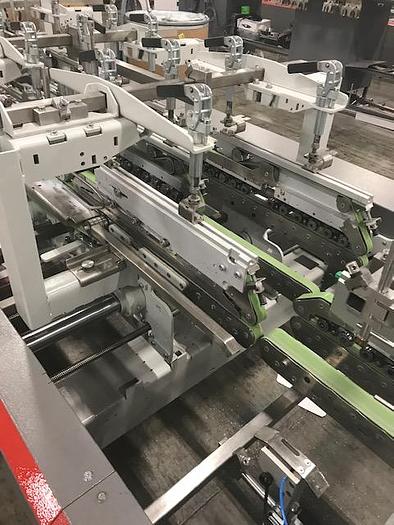

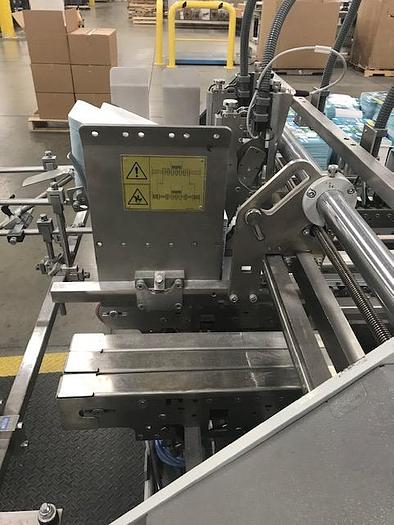

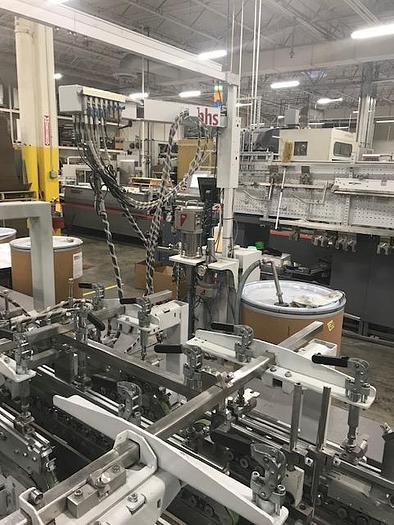

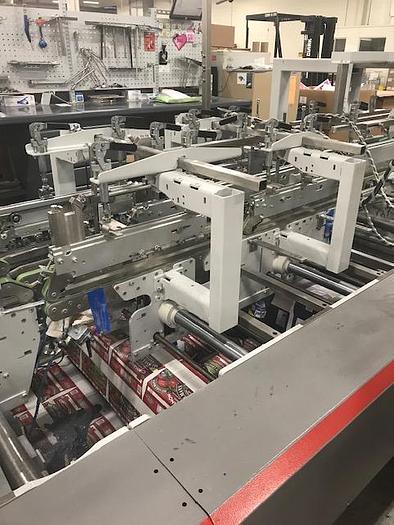

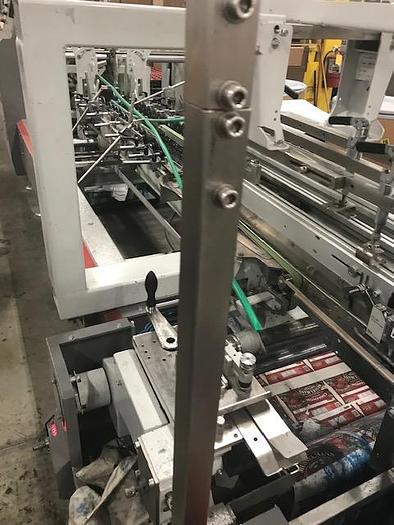

2012 Bobst Expertfold 110-A

Carton board max .049 in Heavy solid board max .049 in Corrugated flute type F, E, N Capability Speed 65 to 1476 ft/min Inching speed 64 ft/min Thickness of folded box max 0.47 in Box sizes Straight line "C" 4.96 to 19.68 | 31.49 | 43.30 in Straight line "E" 2.36 to 31.49 | 31.49 | 31.49 in Straight line "L" 2.36 to 9.25 | 15.15 | 21.06 in Crash-lock bottom "C" 5.74 to 19.68 | 31.49 | 43.30 in Crash-lock bottom "L" (2) 2.75 to 9.25 | 15.15 | 21.06 in 4-corner "C" (2) 4.72 to 31.49 | 43.30 in 4-corner "E" (2) 5.11 to 31.49 | 31.49 in 4-corner "H" (2) 0.78 to 4.48 | 5.90 in 6-corner boxes "C" (2) 9.84 to 31.49 | 43.30 in 6-corner boxes "E" (2) 5.11 to 31.49 | 31.49 in 6-corner boxes "H" (2) 1.18 to 4.48 | 5.90 in Dimensions & weight Net weight 6.6 US ton
