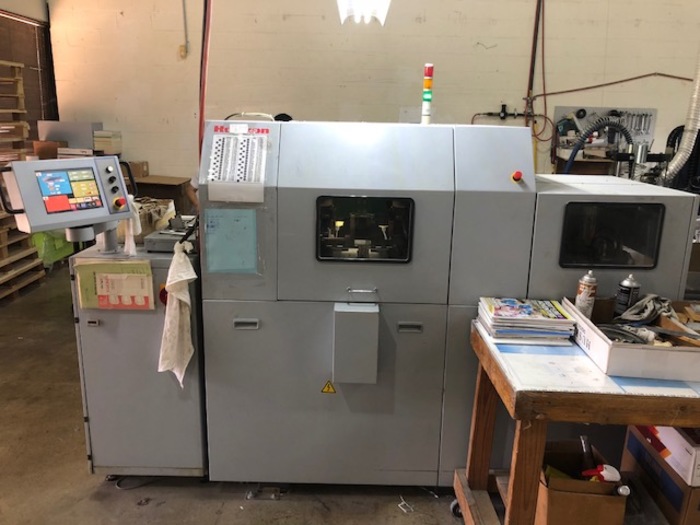

2007 Standard Horizon HT101 3 Knife Trimmer

Model : HT-101, Three Knife Trimmer Printing Machine Year : 2007 Trim Count: 2.2mm Details : Condition very good Offer used Technical details : Untrimmed Book Size: Max. 410 mm (16.14") length 320 mm (12.59") width Min. 148 mm (5.83") length 105 mm (4.14") width Trimmed Book Size: Max. 366 mm (14.40") length 300 mm (11.81") width Min. 145 mm (5.71") length 103 mm (4.05") width Trimmings Width: Maximum (Fore-edge Side) :45 mm (1.77") (Maximum trim width for fore-edge is 23 mm when the finishing size is A4E.) Maximum (Top-Bottom Side):30 mm (1.18") Trim Thickness: Max. 100 mm (3.93") (Except for condition below) a. Max. 50 mm (1.96") for the booklets of which length between spine and fore-edge is 145 mm (5.71") or shorter b. Max. 60 mm (2.36") for the booklets of which length between top and bottom is 297 mm (11.69") or longer c. Max. 50 mm (1.96") for the booklets of which length between spine and fore-edge is 275 mm (10.82") or longer Min. 2 mm (0.08") Trimming Size: A4/A5 (-/+ 3 mm)
